Quantum computing simulations with Qiskit
A tour through quantum gates, entanglement, key algorithms (Grover, QPE, Shor), variational and adiabatic optimisation (VQE, QAOA, QAA), and error correction — all simulated on a classical computer
Quantum computing sits at the intersection of quantum mechanics, linear algebra, and information theory. Unlike classical bits, which are either 0 or 1, quantum bits (qubits) can exist in superpositions of both states simultaneously, and multiple qubits can become entangled — correlations that have no classical analogue. The notebooks in my Quantum-Computing repository simulate all of this on a classical machine using Qiskit and its Aer statevector/shot-based simulator.
Qubits and the Bloch sphere
A single qubit is a unit vector in a two-dimensional complex Hilbert space \(\mathcal{H} \cong \mathbb{C}^2\). In the computational basis \(\{|0\rangle, |1\rangle\}\) it reads
\begin{equation}\label{eq.qubit} |\psi\rangle = \alpha|0\rangle + \beta|1\rangle, \qquad |\alpha|^2 + |\beta|^2 = 1. \end{equation}
Up to a global phase, any such state can be parameterised by two real angles:
\begin{equation}\label{eq.bloch} |\psi\rangle = \cos!\tfrac{\theta}{2}\,|0\rangle + e^{i\phi}\sin!\tfrac{\theta}{2}\,|1\rangle, \quad \theta \in [0,\pi],\; \phi \in [0, 2\pi). \end{equation}
This is the Bloch sphere representation: every pure single-qubit state is a point on the unit sphere, with \(|0\rangle\) at the north pole and \(|1\rangle\) at the south pole.
Single-qubit gates are \(2\times 2\) unitary matrices. The most important ones are:
| Gate | Matrix | Effect on the Bloch sphere |
|---|---|---|
| \(X\) (NOT) | \(\begin{pmatrix}0&1\\1&0\end{pmatrix}\) | \(\pi\) rotation about \(x\) |
| \(Z\) | \(\begin{pmatrix}1&0\\0&-1\end{pmatrix}\) | \(\pi\) rotation about \(z\) |
| \(H\) (Hadamard) | \(\tfrac{1}{\sqrt{2}}\begin{pmatrix}1&1\\1&-1\end{pmatrix}\) | \(\pi\) rotation about \((x+z)/\sqrt{2}\) |
| \(S\) (phase) | \(\begin{pmatrix}1&0\\0&i\end{pmatrix}\) | \(\pi/2\) rotation about \(z\) |
| \(T\) | \(\begin{pmatrix}1&0\\0&e^{i\pi/4}\end{pmatrix}\) | \(\pi/4\) rotation about \(z\) |
The Hadamard gate is of particular importance: it maps \(|0\rangle \mapsto |{+}\rangle = (|0\rangle+|1\rangle)/\sqrt{2}\), creating a balanced superposition. When the resulting state is measured, it yields 0 or 1 with equal probability — confirmed in simulation with 4096 shots below.
Entanglement and Bell states
A two-qubit system lives in \(\mathbb{C}^2 \otimes \mathbb{C}^2\) with computational basis \(\{|00\rangle, |01\rangle, |10\rangle, |11\rangle\}\). A state is entangled if it cannot be written as a tensor product \(|\psi_A\rangle \otimes |\psi_B\rangle\).
The four Bell states are the canonical maximally-entangled two-qubit states:
\begin{equation}\label{eq.bell} |\Phi^\pm\rangle = \frac{|00\rangle \pm |11\rangle}{\sqrt{2}}, \qquad |\Psi^\pm\rangle = \frac{|01\rangle \pm |10\rangle}{\sqrt{2}}. \end{equation}
Each is prepared by applying a Hadamard gate to the first qubit followed by a CNOT:
\[|00\rangle \xrightarrow{H\otimes I} \frac{|0\rangle+|1\rangle}{\sqrt{2}}\otimes|0\rangle \xrightarrow{\mathrm{CNOT}} \frac{|00\rangle+|11\rangle}{\sqrt{2}} = |\Phi^+\rangle.\]
The correlations in \eqref{eq.bell} are what Einstein famously called “spooky action at a distance”: measuring qubit A instantly determines the outcome of measuring qubit B, regardless of separation. Bell’s theorem and subsequent experiments show these correlations cannot be explained by any local hidden-variable theory.
Quantum algorithms
Deutsch–Jozsa
The first algorithm to demonstrate an exponential advantage over classical computation was proposed by Deutsch (1985) and generalised by Jozsa (1992). Given a black-box function \(f:\{0,1\}^n \to \{0,1\}\) promised to be either constant (same value on all inputs) or balanced (exactly half inputs map to 0, half to 1), determine which it is.
- Classical deterministic: \(2^{n-1}+1\) queries in the worst case.
- Quantum: exactly 1 query.
The circuit places \(n\) query qubits in a uniform superposition via \(H^{\otimes n}\), applies the oracle \(U_f|x\rangle|y\rangle = |x\rangle|y\oplus f(x)\rangle\) with the ancilla qubit in the state \(|{-}\rangle\), then applies \(H^{\otimes n}\) again and measures. A constant oracle leaves all query qubits in \(|0\rangle\); a balanced oracle puts them in any state orthogonal to \(|0\cdots0\rangle\), always yielding a non-zero measurement result.
Grover’s search
Grover’s algorithm (1996) searches an unstructured database of \(N = 2^n\) items for a marked element using only \(O(\sqrt{N})\) oracle queries, compared to \(O(N)\) classically. This is a quadratic speedup.
Starting from the uniform superposition \(|s\rangle = H^{\otimes n}|0\rangle\), one Grover iteration consists of two reflections:
-
Oracle: $$O x\rangle = (-1)^{f(x)} x\rangle\(— flips the phase of the target state\) \omega\rangle$$. -
Diffusion: $$D = 2 s\rangle\langle s - I$$ — reflects about the mean amplitude.
Each iteration rotates the state vector by \(2\theta\) in the two-dimensional subspace spanned by \(|\omega\rangle\) and its orthogonal complement, where \(\sin\theta = 1/\sqrt{N}\). After \(k \approx \tfrac{\pi}{4}\sqrt{N}\) iterations the overlap with \(|\omega\rangle\) is maximised.
\begin{equation} P(|\omega\rangle) \approx \sin^2!\left((2k+1)\theta\right) \end{equation}
Quantum Fourier Transform
The Quantum Fourier Transform (QFT) is the quantum analogue of the discrete Fourier transform. On an \(n\)-qubit register it implements
\begin{equation}\label{eq.qft} \mathrm{QFT}|j\rangle = \frac{1}{\sqrt{N}}\sum_{k=0}^{N-1} e^{2\pi i jk/N}|k\rangle, \qquad N=2^n, \end{equation}
mapping each computational basis state to a superposition with linearly spaced phases. The DFT on \(N\) points requires \(O(N\log N)\) classical operations; the QFT needs only \(O(n^2)\) gates — an exponential reduction.
The circuit decomposes into Hadamard gates and controlled phase rotations \(R_k = \mathrm{diag}(1, e^{2\pi i/2^k})\), plus a bit-reversal via SWAP gates.
Quantum Phase Estimation
Quantum Phase Estimation (QPE) is the key subroutine in Shor’s algorithm and quantum chemistry solvers. Given a unitary \(U\) and an eigenstate \(|u\rangle\) with \(U|u\rangle = e^{2\pi i\varphi}|u\rangle\), QPE estimates \(\varphi\) to \(n\) bits of precision using \(n\) counting qubits and one application of the QFT.
| The estimation error is bounded by $$ | \hat{\varphi} - \varphi | \leq 2^{-n}$$. |
Shor’s factoring algorithm
Shor’s algorithm (1994) reduces integer factorisation to order finding: given \(a\) coprime to \(N\), find the smallest \(r\) such that \(a^r \equiv 1 \pmod{N}\). QPE applied to the unitary \(U|y\rangle = |ay \bmod N\rangle\) yields the order \(r\) with high probability. Once \(r\) is known, the factors of \(N\) follow from \(\gcd(a^{r/2} \pm 1, N)\).
The gate count for the modular exponentiation circuit grows exponentially with the number of counting qubits — a major hurdle for near-term hardware:
Variational Quantum Eigensolver
The Variational Quantum Eigensolver (VQE) is a hybrid classical-quantum algorithm designed for near-term noisy devices. It exploits the variational principle:
\begin{equation}\label{eq.vp} E_0 \leq \langle\psi(\boldsymbol\theta)|\hat{H}|\psi(\boldsymbol\theta)\rangle \equiv E(\boldsymbol\theta), \end{equation}
where \(|\psi(\boldsymbol\theta)\rangle\) is a parameterised ansatz state prepared by a quantum circuit, and \(E_0\) is the true ground-state energy. A classical optimiser minimises \(E(\boldsymbol\theta)\) by updating the circuit parameters in a closed loop.
The target here is the H\(_2\) molecular Hamiltonian (mapped to qubits via Jordan-Wigner):
\begin{equation} \hat{H} = c_0 I + c_1 Z_0 + c_2 Z_1 + c_3 Z_0 Z_1 + c_4 X_0 X_1 + c_5 Y_0 Y_1, \end{equation}
with exact ground state energy \(E_0 = -1.771168\;\mathrm{Ha}\) at equilibrium bond length \(d = 0.735\;\text{Å}\).
In practice, quantum computers estimate expectation values through finite shot noise: each Pauli term is measured a finite number of times, introducing statistical error that scales as \(1/\sqrt{M_\mathrm{shots}}\). With too few shots the optimiser cannot resolve the energy landscape:
Combinatorial optimisation: QAOA and QAA
A large class of NP-hard problems can be cast as the minimisation of a classical Ising Hamiltonian
\begin{equation}\label{eq.classical_ising} \hat{H}C = \sum_i h_i\,Z_i + \sum{i<j} J_{ij}\,Z_iZ_j. \end{equation}
The ground state of \(\hat{H}_C\) encodes the optimal solution — but the configuration space has \(2^n\) elements and the landscape is generically rugged. Two related quantum strategies attack this directly: the Quantum Adiabatic Algorithm (QAA), which slowly interpolates from a trivial Hamiltonian to \(\hat{H}_C\) and rides the instantaneous ground state, and the Quantum Approximate Optimization Algorithm (QAOA), which compresses that adiabatic trajectory into a shallow, parameterised gate-model circuit and lets a classical optimiser choose the schedule. The two are intimately related: at large depth, QAOA reduces to a Trotterised QAA.

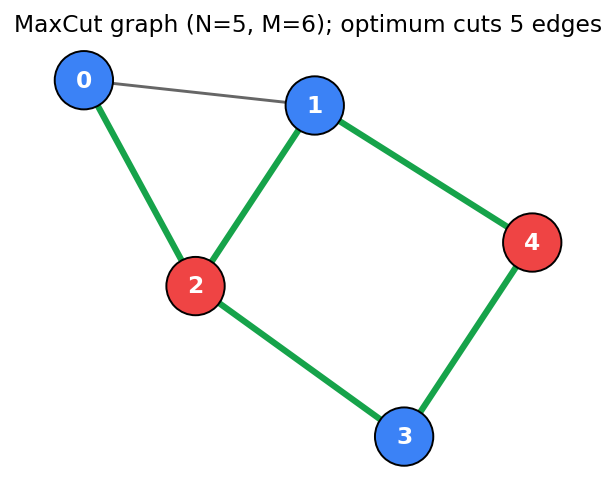

I implement both on the same problem instance — MaxCut on a 5-vertex graph with 6 edges — so the two approaches can be compared head-to-head. Brute force gives a maximum cut of \(5\) edges (with the \(\mathbb{Z}_2\)-symmetric pair shown).
QAOA
For a mixer \(\hat{H}_B = \sum_i X_i\) (whose ground state is the uniform superposition \(|+\rangle^{\otimes n}\)), QAOA prepares
\begin{equation}\label{eq.qaoa_ansatz} |\psi_p(\boldsymbol\gamma,\boldsymbol\beta)\rangle = \prod_{k=1}^{p}\mathrm{e}^{-\mathrm{i}\beta_k \hat{H}_B}\,\mathrm{e}^{-\mathrm{i}\gamma_k \hat{H}_C}\,|+\rangle^{\otimes n}, \end{equation}

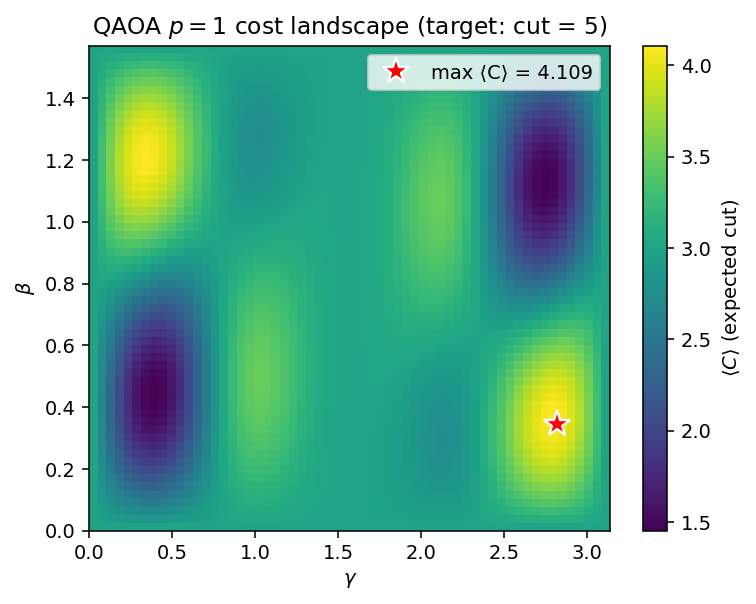

and a classical optimiser minimises \(\langle \hat{H}_C\rangle_{\boldsymbol\gamma,\boldsymbol\beta}\). Even at \(p=1\) the cost landscape is highly non-convex but has clear structure:

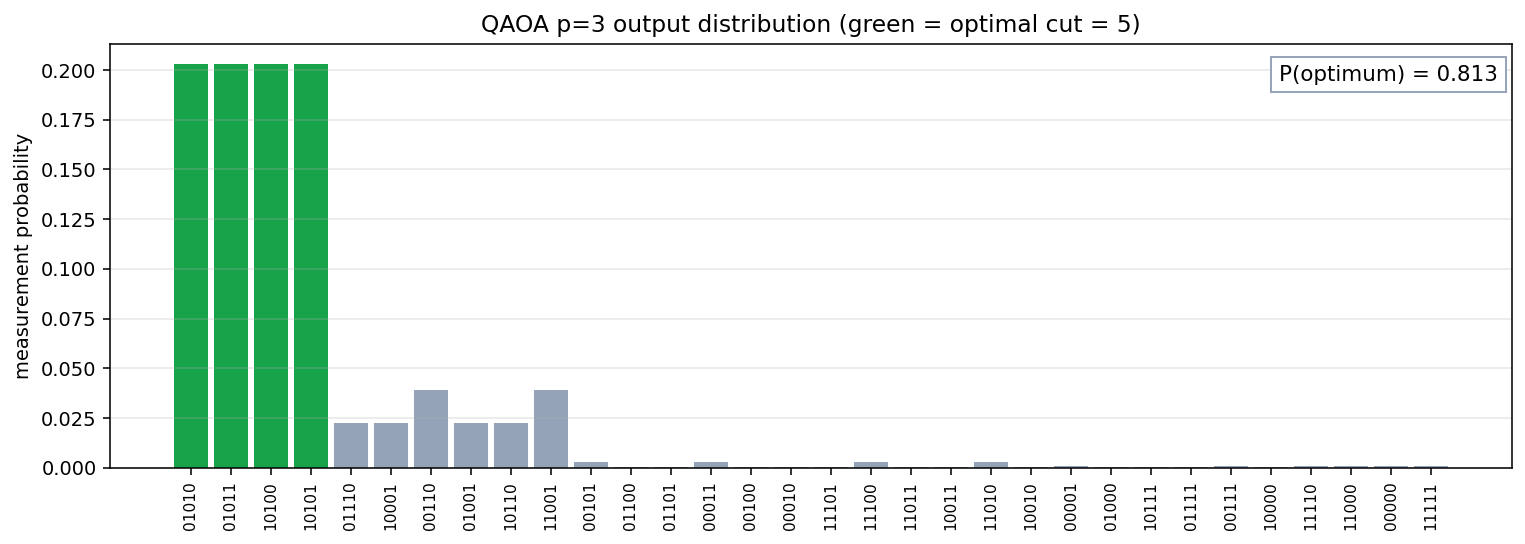

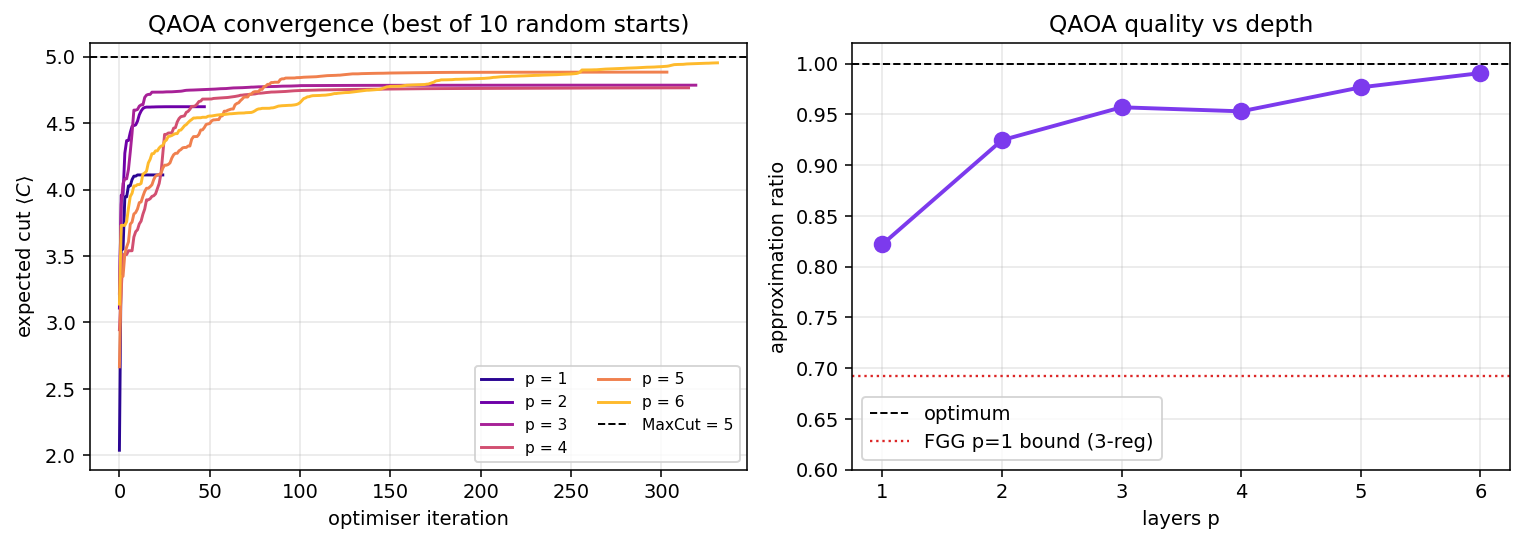

Scaling the depth \(p\) rapidly closes the gap to optimum: at \(p=6\) the expected cut is \(4.95\) out of \(5\) (approximation ratio \(0.99\)), and the measurement distribution concentrates almost entirely on the optimal bitstrings.
Quantum Adiabatic Algorithm
For the QAA we evolve under a time-dependent Hamiltonian
\begin{equation}\label{eq.adiabatic} \hat{H}(s) = (1-s)\,\hat{H}_B + s\,\hat{H}_C, \qquad s = t/T, \end{equation}
starting in the ground state of \(\hat{H}_B\) (which is \(|+\rangle^{\otimes n}\)). The adiabatic theorem guarantees that the system follows the instantaneous ground state if \(T \gg \max_s\|\partial_s \hat{H}\|/\Delta_{\min}^2\), where \(\Delta_{\min}\) is the smallest gap encountered along the path. Applied to the same MaxCut instance with a Trotterised linear schedule:

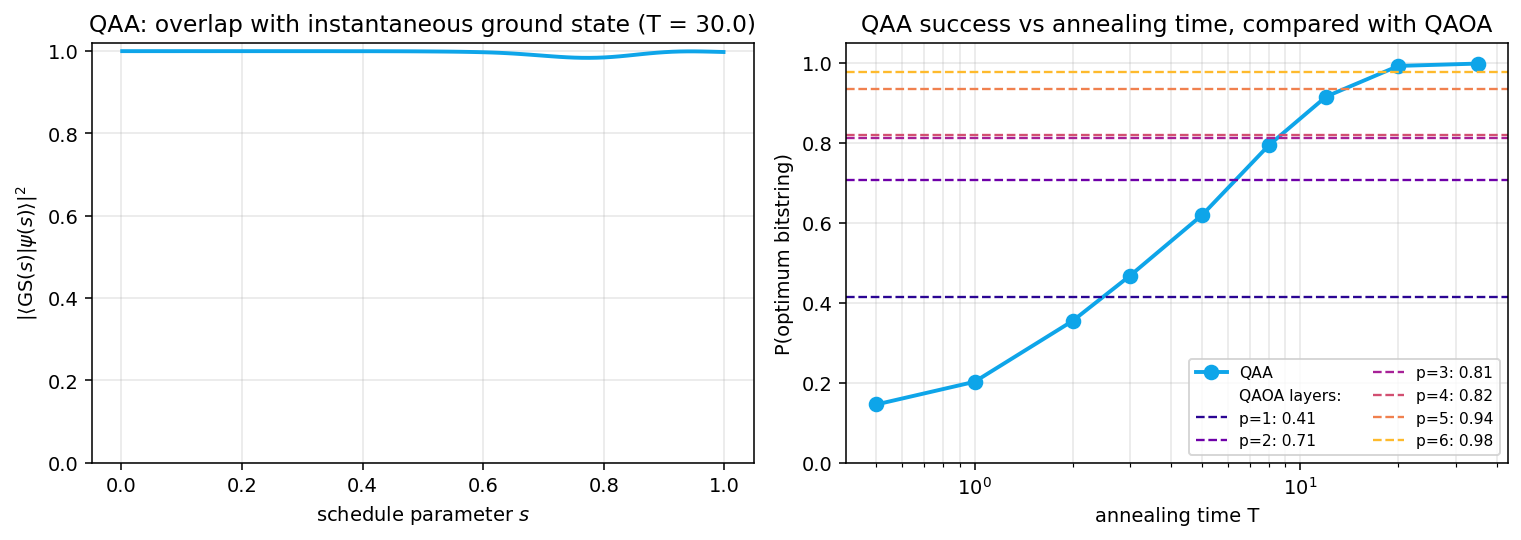

The figure makes the QAOA–QAA equivalence quantitative: QAOA pays its cost in classical optimisation over \(\boldsymbol\gamma,\boldsymbol\beta\); QAA pays it in continuous-time depth. On easy instances they reach the same place.
The adiabatic theorem in action: transverse-field Ising
To isolate the physics of the adiabatic theorem, I run QAA on the cleaner toy model
\begin{equation}\label{eq.tfim} \hat{H}X = -\sum{i=1}^{n} X_i, \qquad \hat{H}{ZZ} = -\sum{i=1}^{n-1} Z_i Z_{i+1}, \end{equation}

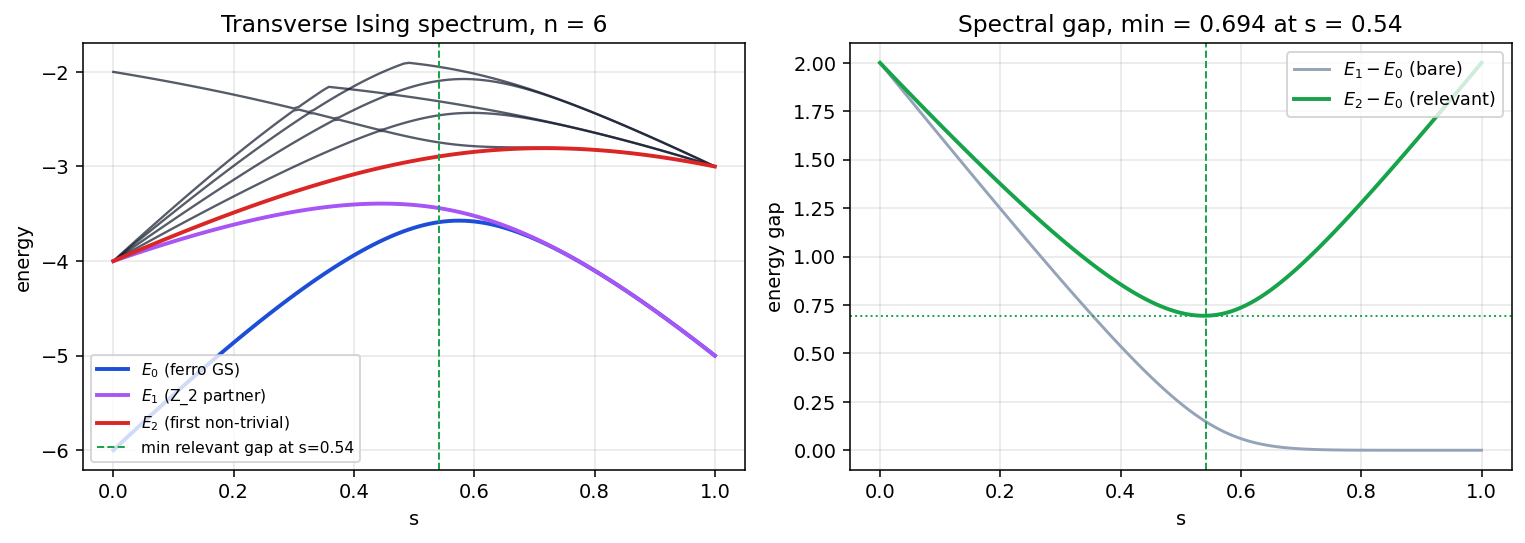

with \(\hat{H}(s) = (1-s)\hat{H}_X + s\hat{H}_{ZZ}\). At \(s=0\) the ground state is the paramagnet \(|+\rangle^{\otimes n}\); at \(s=1\) it is the doubly-degenerate ferromagnet \(\{|0\cdots 0\rangle, |1\cdots 1\rangle\}\). The model has a quantum phase transition in the thermodynamic limit at \(s_c = 1/2\), signalled on the finite chain by a minimum gap in the relevant (spin-flip-symmetric) sector:

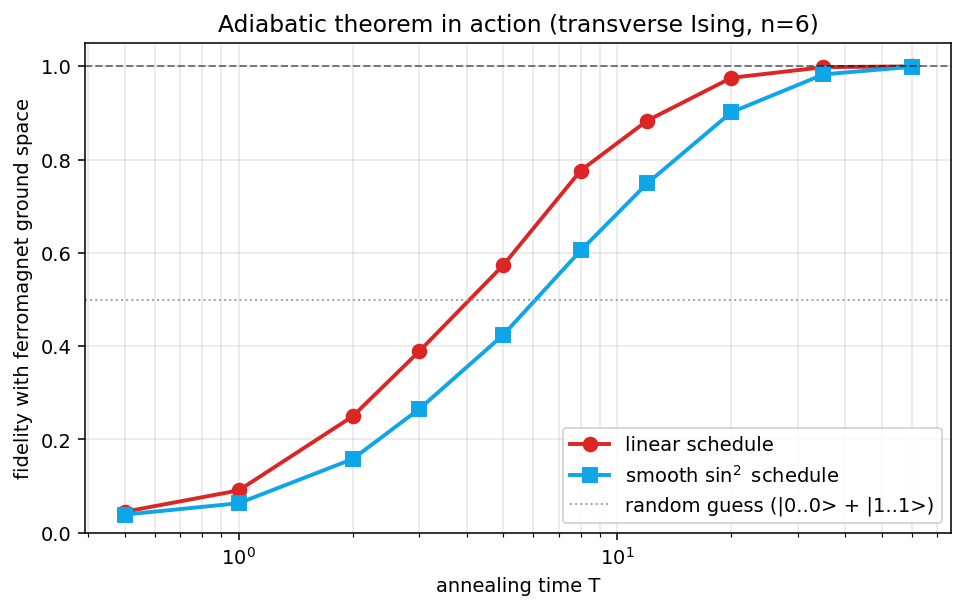

The adiabatic prediction is \(T \gtrsim 1/\Delta_{\min}^2 \approx 2\). The fidelity curve confirms it:
Physical qubits decohere: they suffer bit-flip errors (\(X\)), phase-flip errors (\(Z\)), and combinations (\(Y = iXZ\)). Unlike classical bits, quantum states cannot simply be copied (no-cloning theorem), making error correction non-trivial.
The 3-qubit bit-flip code encodes one logical qubit \(|\bar{0}\rangle = |000\rangle\), \(|\bar{1}\rangle = |111\rangle\) across three physical qubits. A single-qubit bit-flip can be detected and corrected via parity measurements without collapsing the logical state. The logical error rate is
\begin{equation}\label{eq.3bit} p_L = 3p^2 - 2p^3, \end{equation}
where \(p\) is the physical error rate per qubit. For \(p < 1/2\) we have \(p_L < p\): the code improves reliability.
More powerful codes — the Shor [[9,1,3]] code, the Steane [[7,1,3]] code, and eventually the surface code — protect against arbitrary single-qubit errors and are the leading candidates for fault-tolerant quantum computing. The central open problem in the field is demonstrating that logical error rates can be pushed below the fault-tolerance threshold as the code distance grows — an achievement that would pave the way for running Shor’s algorithm on cryptographically relevant problem sizes.
All simulations are available in the Quantum-Computing repository, covering these topics and more across five Jupyter notebooks: quantum_computing_simulations.ipynb, qft_shors_algorithm.ipynb, variational_quantum_eigensolver.ipynb, qaoa_qaa.ipynb, and quantum_error_correction.ipynb.
