Quantum computing simulations with Qiskit
A tour through quantum gates, entanglement, key algorithms, VQE, and error correction — all simulated on a classical computer
Quantum computing sits at the intersection of quantum mechanics, linear algebra, and information theory. Unlike classical bits, which are either 0 or 1, quantum bits (qubits) can exist in superpositions of both states simultaneously, and multiple qubits can become entangled — correlations that have no classical analogue. The notebooks in my Quantum-Computing repository simulate all of this on a classical machine using Qiskit and its Aer statevector/shot-based simulator.
Qubits and the Bloch sphere
A single qubit is a unit vector in a two-dimensional complex Hilbert space \(\mathcal{H} \cong \mathbb{C}^2\). In the computational basis \(\{|0\rangle, |1\rangle\}\) it reads
\begin{equation}\label{eq.qubit} |\psi\rangle = \alpha|0\rangle + \beta|1\rangle, \qquad |\alpha|^2 + |\beta|^2 = 1. \end{equation}
Up to a global phase, any such state can be parameterised by two real angles:
\begin{equation}\label{eq.bloch} |\psi\rangle = \cos!\tfrac{\theta}{2}\,|0\rangle + e^{i\phi}\sin!\tfrac{\theta}{2}\,|1\rangle, \quad \theta \in [0,\pi],\; \phi \in [0, 2\pi). \end{equation}

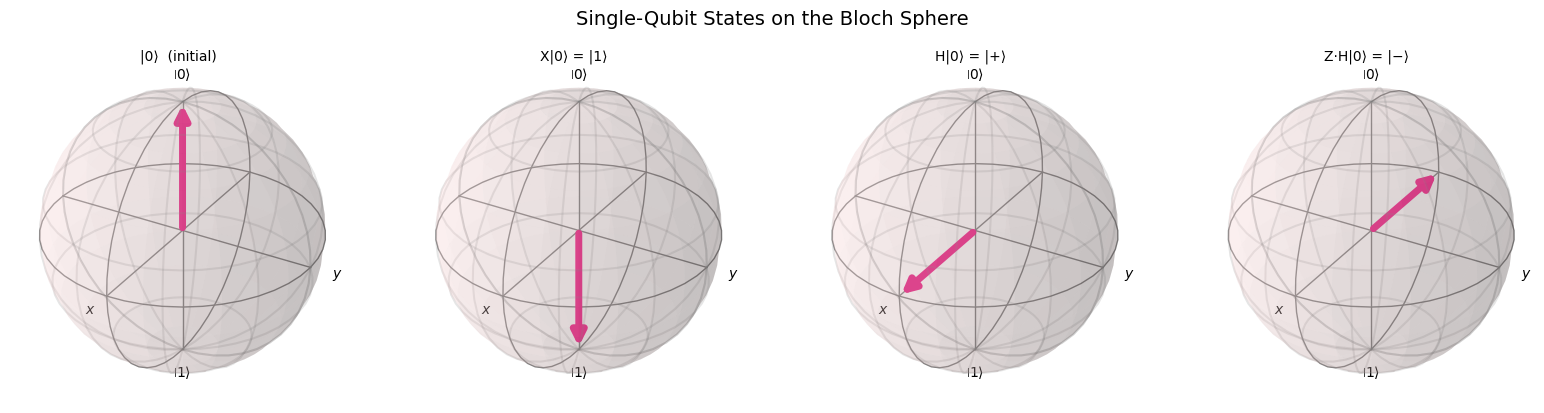

This is the Bloch sphere representation: every pure single-qubit state is a point on the unit sphere, with \(|0\rangle\) at the north pole and \(|1\rangle\) at the south pole.
Single-qubit gates are \(2\times 2\) unitary matrices. The most important ones are:
| Gate | Matrix | Effect on the Bloch sphere |
|---|---|---|
| \(X\) (NOT) | \(\begin{pmatrix}0&1\\1&0\end{pmatrix}\) | \(\pi\) rotation about \(x\) |
| \(Z\) | \(\begin{pmatrix}1&0\\0&-1\end{pmatrix}\) | \(\pi\) rotation about \(z\) |
| \(H\) (Hadamard) | \(\tfrac{1}{\sqrt{2}}\begin{pmatrix}1&1\\1&-1\end{pmatrix}\) | \(\pi\) rotation about \((x+z)/\sqrt{2}\) |
| \(S\) (phase) | \(\begin{pmatrix}1&0\\0&i\end{pmatrix}\) | \(\pi/2\) rotation about \(z\) |
| \(T\) | \(\begin{pmatrix}1&0\\0&e^{i\pi/4}\end{pmatrix}\) | \(\pi/4\) rotation about \(z\) |

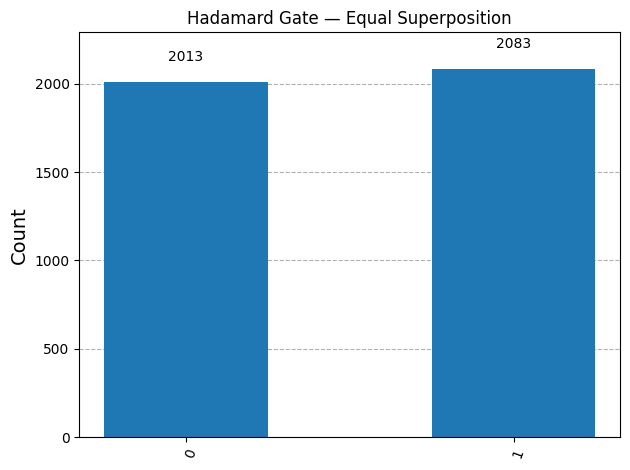

The Hadamard gate is of particular importance: it maps \(|0\rangle \mapsto |{+}\rangle = (|0\rangle+|1\rangle)/\sqrt{2}\), creating a balanced superposition. When the resulting state is measured, it yields 0 or 1 with equal probability — confirmed in simulation with 4096 shots below.
Entanglement and Bell states
A two-qubit system lives in \(\mathbb{C}^2 \otimes \mathbb{C}^2\) with computational basis \(\{|00\rangle, |01\rangle, |10\rangle, |11\rangle\}\). A state is entangled if it cannot be written as a tensor product \(|\psi_A\rangle \otimes |\psi_B\rangle\).

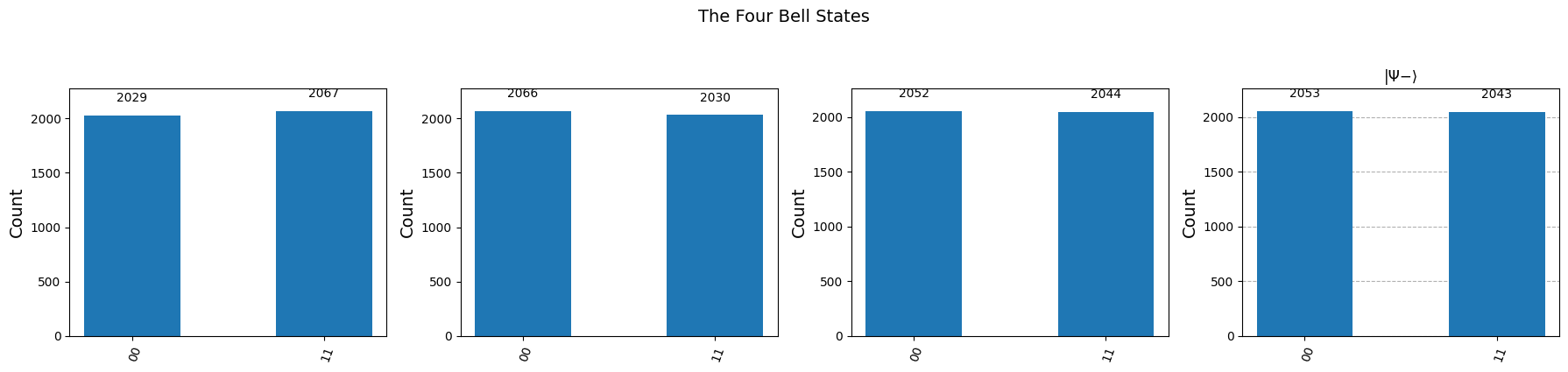

The four Bell states are the canonical maximally-entangled two-qubit states:
\begin{equation}\label{eq.bell} |\Phi^\pm\rangle = \frac{|00\rangle \pm |11\rangle}{\sqrt{2}}, \qquad |\Psi^\pm\rangle = \frac{|01\rangle \pm |10\rangle}{\sqrt{2}}. \end{equation}
Each is prepared by applying a Hadamard gate to the first qubit followed by a CNOT:
\[|00\rangle \xrightarrow{H\otimes I} \frac{|0\rangle+|1\rangle}{\sqrt{2}}\otimes|0\rangle \xrightarrow{\mathrm{CNOT}} \frac{|00\rangle+|11\rangle}{\sqrt{2}} = |\Phi^+\rangle.\]
The correlations in \eqref{eq.bell} are what Einstein famously called “spooky action at a distance”: measuring qubit A instantly determines the outcome of measuring qubit B, regardless of separation. Bell’s theorem and subsequent experiments show these correlations cannot be explained by any local hidden-variable theory.
Quantum algorithms
Deutsch–Jozsa
The first algorithm to demonstrate an exponential advantage over classical computation was proposed by Deutsch (1985) and generalised by Jozsa (1992). Given a black-box function \(f:\{0,1\}^n \to \{0,1\}\) promised to be either constant (same value on all inputs) or balanced (exactly half inputs map to 0, half to 1), determine which it is.
- Classical deterministic: \(2^{n-1}+1\) queries in the worst case.
- Quantum: exactly 1 query.

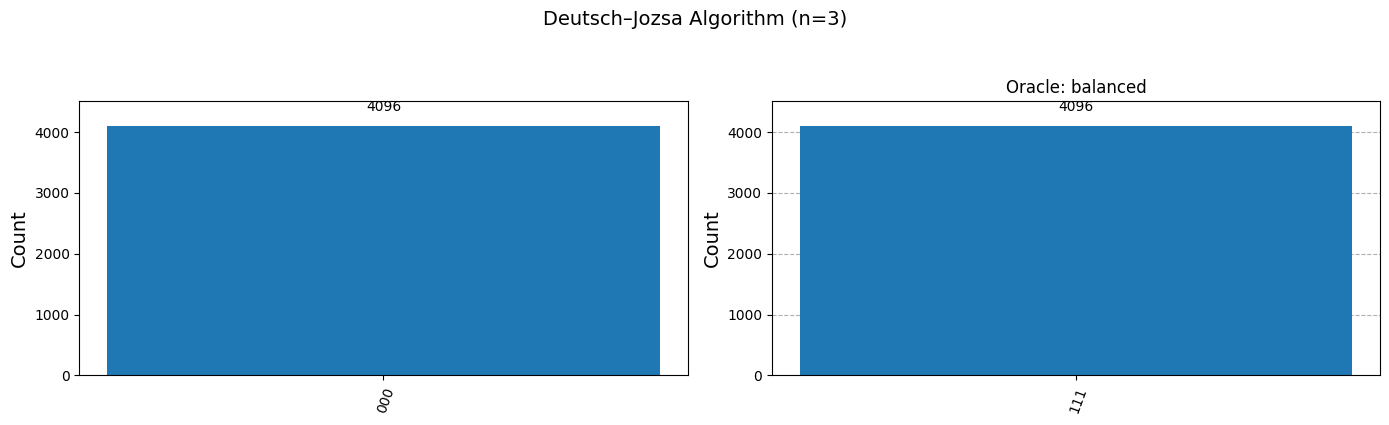

The circuit places \(n\) query qubits in a uniform superposition via \(H^{\otimes n}\), applies the oracle \(U_f|x\rangle|y\rangle = |x\rangle|y\oplus f(x)\rangle\) with the ancilla qubit in the state \(|{-}\rangle\), then applies \(H^{\otimes n}\) again and measures. A constant oracle leaves all query qubits in \(|0\rangle\); a balanced oracle puts them in any state orthogonal to \(|0\cdots0\rangle\), always yielding a non-zero measurement result.
Grover’s search
Grover’s algorithm (1996) searches an unstructured database of \(N = 2^n\) items for a marked element using only \(O(\sqrt{N})\) oracle queries, compared to \(O(N)\) classically. This is a quadratic speedup.
Starting from the uniform superposition \(|s\rangle = H^{\otimes n}|0\rangle\), one Grover iteration consists of two reflections:
-
Oracle: $$O x\rangle = (-1)^{f(x)} x\rangle\(— flips the phase of the target state\) \omega\rangle$$. -
Diffusion: $$D = 2 s\rangle\langle s - I$$ — reflects about the mean amplitude.
Each iteration rotates the state vector by \(2\theta\) in the two-dimensional subspace spanned by \(|\omega\rangle\) and its orthogonal complement, where \(\sin\theta = 1/\sqrt{N}\). After \(k \approx \tfrac{\pi}{4}\sqrt{N}\) iterations the overlap with \(|\omega\rangle\) is maximised.
\begin{equation} P(|\omega\rangle) \approx \sin^2!\left((2k+1)\theta\right) \end{equation}
Quantum Fourier Transform

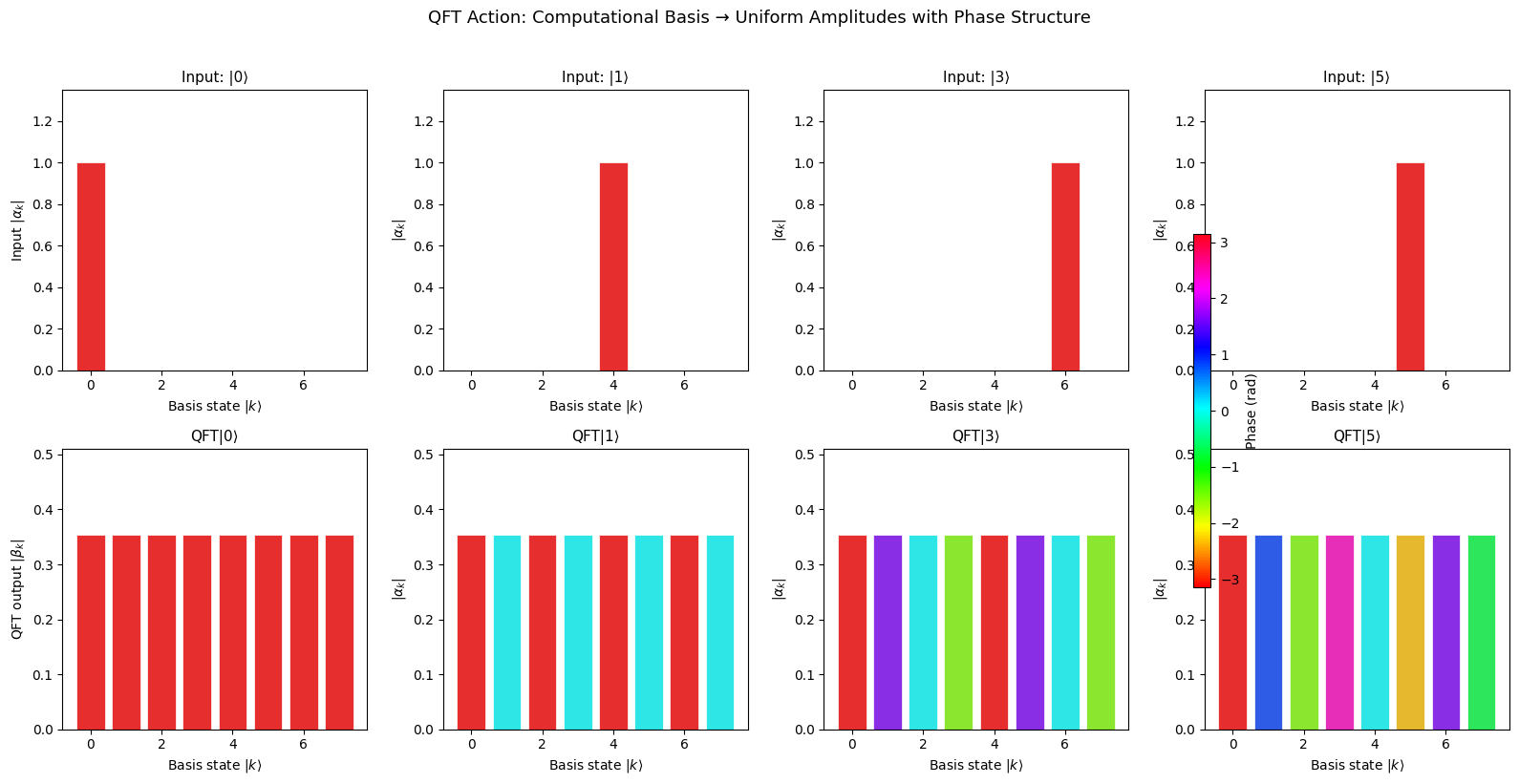

The Quantum Fourier Transform (QFT) is the quantum analogue of the discrete Fourier transform. On an \(n\)-qubit register it implements
\begin{equation}\label{eq.qft} \mathrm{QFT}|j\rangle = \frac{1}{\sqrt{N}}\sum_{k=0}^{N-1} e^{2\pi i jk/N}|k\rangle, \qquad N=2^n, \end{equation}
mapping each computational basis state to a superposition with linearly spaced phases. The DFT on \(N\) points requires \(O(N\log N)\) classical operations; the QFT needs only \(O(n^2)\) gates — an exponential reduction.
The circuit decomposes into Hadamard gates and controlled phase rotations \(R_k = \mathrm{diag}(1, e^{2\pi i/2^k})\), plus a bit-reversal via SWAP gates.
Quantum Phase Estimation
Quantum Phase Estimation (QPE) is the key subroutine in Shor’s algorithm and quantum chemistry solvers. Given a unitary \(U\) and an eigenstate \(|u\rangle\) with \(U|u\rangle = e^{2\pi i\varphi}|u\rangle\), QPE estimates \(\varphi\) to \(n\) bits of precision using \(n\) counting qubits and one application of the QFT.

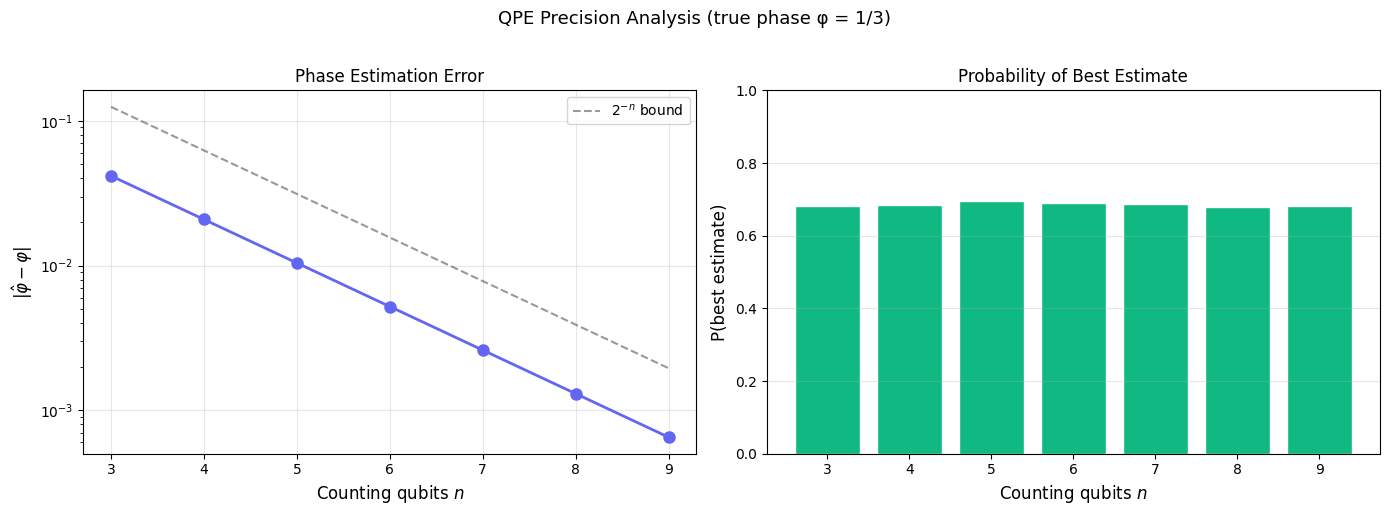

| The estimation error is bounded by $$ | \hat{\varphi} - \varphi | \leq 2^{-n}$$. |
Shor’s factoring algorithm
Shor’s algorithm (1994) reduces integer factorisation to order finding: given \(a\) coprime to \(N\), find the smallest \(r\) such that \(a^r \equiv 1 \pmod{N}\). QPE applied to the unitary \(U|y\rangle = |ay \bmod N\rangle\) yields the order \(r\) with high probability. Once \(r\) is known, the factors of \(N\) follow from \(\gcd(a^{r/2} \pm 1, N)\).

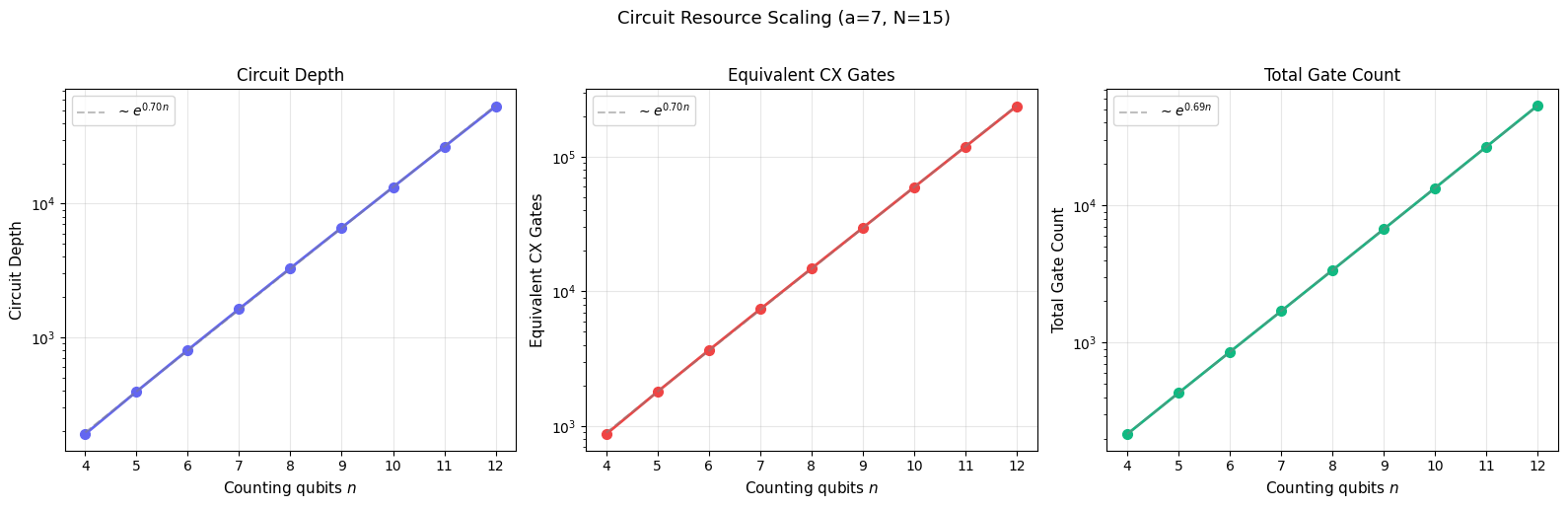

The gate count for the modular exponentiation circuit grows exponentially with the number of counting qubits — a major hurdle for near-term hardware:
Variational Quantum Eigensolver
The Variational Quantum Eigensolver (VQE) is a hybrid classical-quantum algorithm designed for near-term noisy devices. It exploits the variational principle:
\begin{equation}\label{eq.vp} E_0 \leq \langle\psi(\boldsymbol\theta)|\hat{H}|\psi(\boldsymbol\theta)\rangle \equiv E(\boldsymbol\theta), \end{equation}

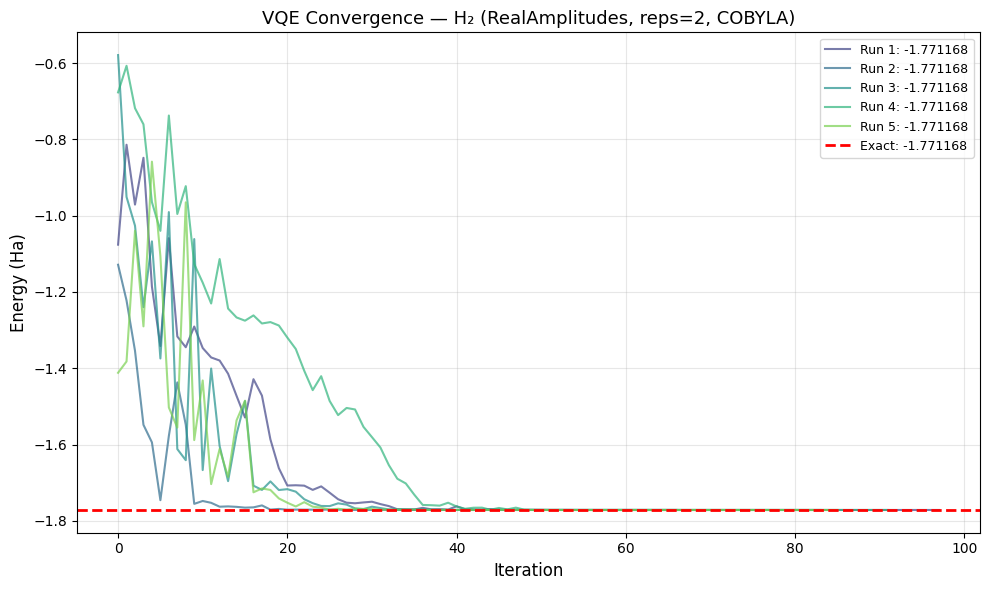

where \(|\psi(\boldsymbol\theta)\rangle\) is a parameterised ansatz state prepared by a quantum circuit, and \(E_0\) is the true ground-state energy. A classical optimiser minimises \(E(\boldsymbol\theta)\) by updating the circuit parameters in a closed loop.
The target here is the H\(_2\) molecular Hamiltonian (mapped to qubits via Jordan-Wigner):
\begin{equation} \hat{H} = c_0 I + c_1 Z_0 + c_2 Z_1 + c_3 Z_0 Z_1 + c_4 X_0 X_1 + c_5 Y_0 Y_1, \end{equation}
with exact ground state energy \(E_0 = -1.771168\;\mathrm{Ha}\) at equilibrium bond length \(d = 0.735\;\text{Å}\).

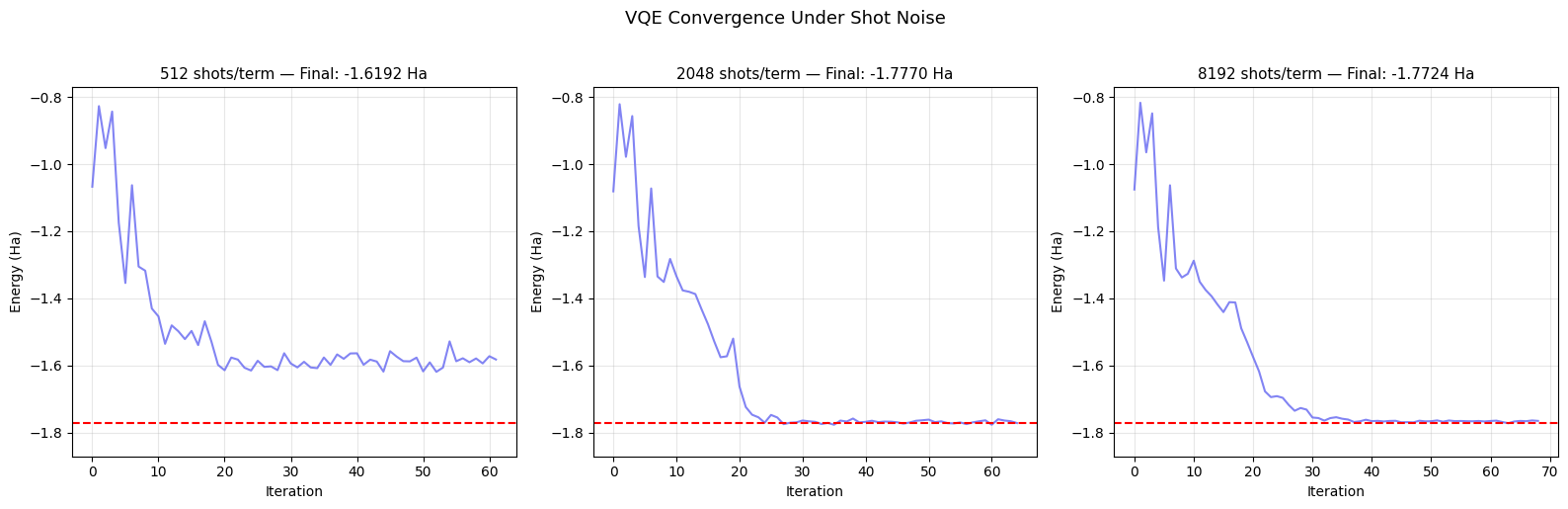

In practice, quantum computers estimate expectation values through finite shot noise: each Pauli term is measured a finite number of times, introducing statistical error that scales as \(1/\sqrt{M_\mathrm{shots}}\). With too few shots the optimiser cannot resolve the energy landscape:
Quantum error correction
Physical qubits decohere: they suffer bit-flip errors (\(X\)), phase-flip errors (\(Z\)), and combinations (\(Y = iXZ\)). Unlike classical bits, quantum states cannot simply be copied (no-cloning theorem), making error correction non-trivial.

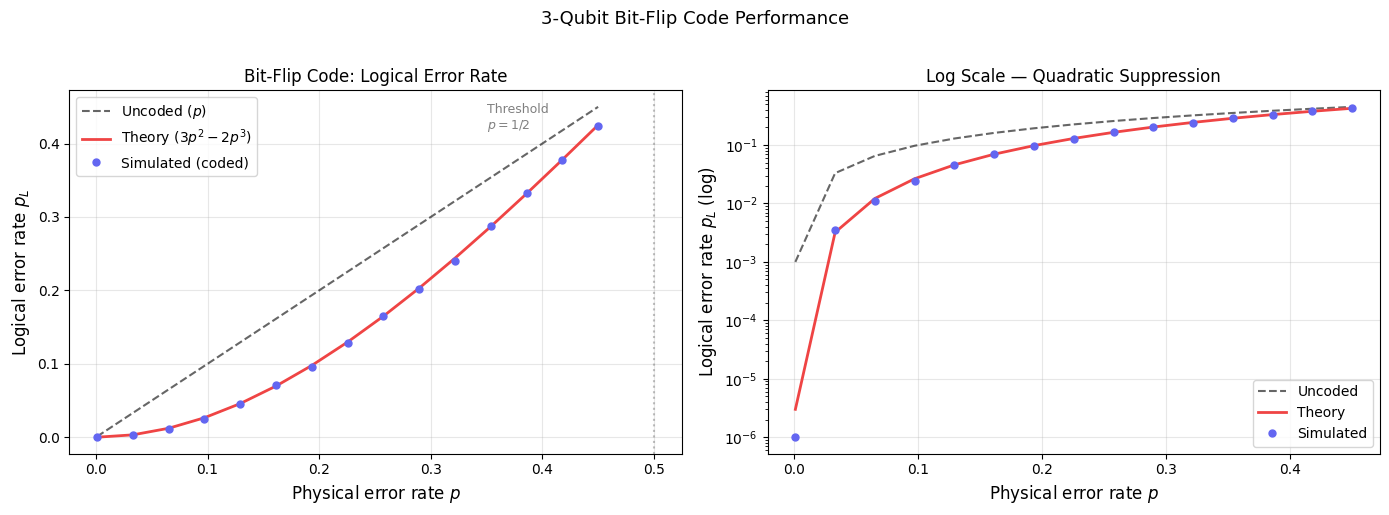

The 3-qubit bit-flip code encodes one logical qubit \(|\bar{0}\rangle = |000\rangle\), \(|\bar{1}\rangle = |111\rangle\) across three physical qubits. A single-qubit bit-flip can be detected and corrected via parity measurements without collapsing the logical state. The logical error rate is
\begin{equation}\label{eq.3bit} p_L = 3p^2 - 2p^3, \end{equation}
where \(p\) is the physical error rate per qubit. For \(p < 1/2\) we have \(p_L < p\): the code improves reliability.
More powerful codes — the Shor [[9,1,3]] code, the Steane [[7,1,3]] code, and eventually the surface code — protect against arbitrary single-qubit errors and are the leading candidates for fault-tolerant quantum computing. The central open problem in the field is demonstrating that logical error rates can be pushed below the fault-tolerance threshold as the code distance grows — an achievement that would pave the way for running Shor’s algorithm on cryptographically relevant problem sizes.
All simulations are available in the Quantum-Computing repository, covering these topics and more across four Jupyter notebooks: quantum_computing_simulations.ipynb, qft_shors_algorithm.ipynb, variational_quantum_eigensolver.ipynb, and quantum_error_correction.ipynb.
